| Price: | $13,000.00 - $20,000.00/sets |
Parameter configuration of LiuGong ZL50CN loader
Basic performance
Rated load (ton) 3-5 tons
Rated load capacity (kg) 5000
Operating weight of the whole machine (kg) 16800
Bucket capacity (m ³) 1.8-5.6
Maximum unloading height (mm) 2970 ± 25
Unloading distance (mm) 1200 ± 25
Excavation force (digging force) (kN) 167

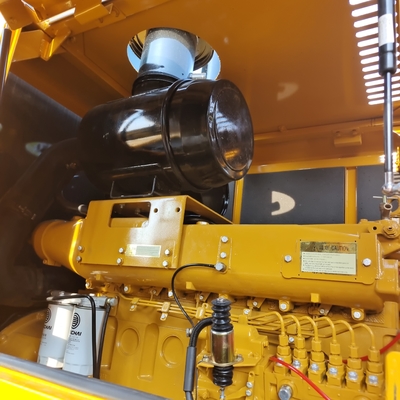

engine
Engine model Weichai WD10G220E21/E23
Rated power (kW/rpm) 162/2200
Cylinder diameter x stroke (mm) 126 x 130
Cooling method: water cooling
Working form: inline 6-cylinder; 4 strokes; Direct spray
Oil capacity
Fuel tank (L) 300
Hydraulic oil tank (L) 300
Cooling liquid (L) 54
Transmission
Brand and model of planetary gearbox; Multi disc clutch; Power shifting; Forced lubrication
Driving speed 1st gear (km/h) October 13th
Driving speed 2nd gear (km/h) 0-34
Drive axle
Drive axle model four-wheel drive
steering system
Steering angle ± 35 °
Turning radius - outside of bucket (mm) 7598
The minimum turning radius of the centerline of the outer wheel is 6347 ± 50
hydraulic system
Rated working pressure (bars) 17MPa
Boom cylinder diameter x stroke (mm x mm) 2-165 x 757
Bucket cylinder diameter x stroke (mm x mm) 1-200 x 540
Working device action time
Lifting (s) 6.5
Uninstall (s) 1.5
Lower the empty bucket (s) 3.5
Triple sum (s) 11.5
technical parameter
Maximum traction force (kN) 175
Material transportation position height (mm) 4020 ± 25
Distance from rear axle to hinge point (mm) 2227
Overall dimensions
Overall length (mm) 6600 ± 50
Overall width (mm) 2750 ± 50
Overall height (mm) 3470 ± 50
Maximum length of the entire machine (mm): 8030 ± 50
Minimum ground clearance (mm) 485
Bucket width (mm) 2976
Wheelbase (mm) 3427 ± 50
Track width (mm) 2150
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Tony zou
Whats app/Mobile phone:+8613564042317
We chat number:13564042317
in bulk whole complete loading way
40HQ Load method
|
|
