| Price: | $25,500.00/sets >=1 sets |
| Company’s Name:ShangHai Long shou machinery company Limited |
| Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
| Contact :Olivia.He |
| Whats app/ Mobile phone:+8618701954897 |
| We chat number:18701954897 |
|
|

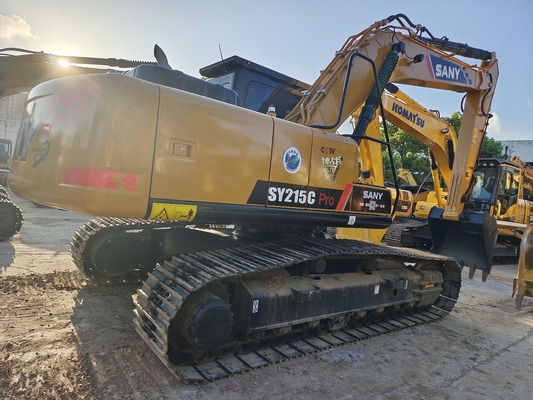

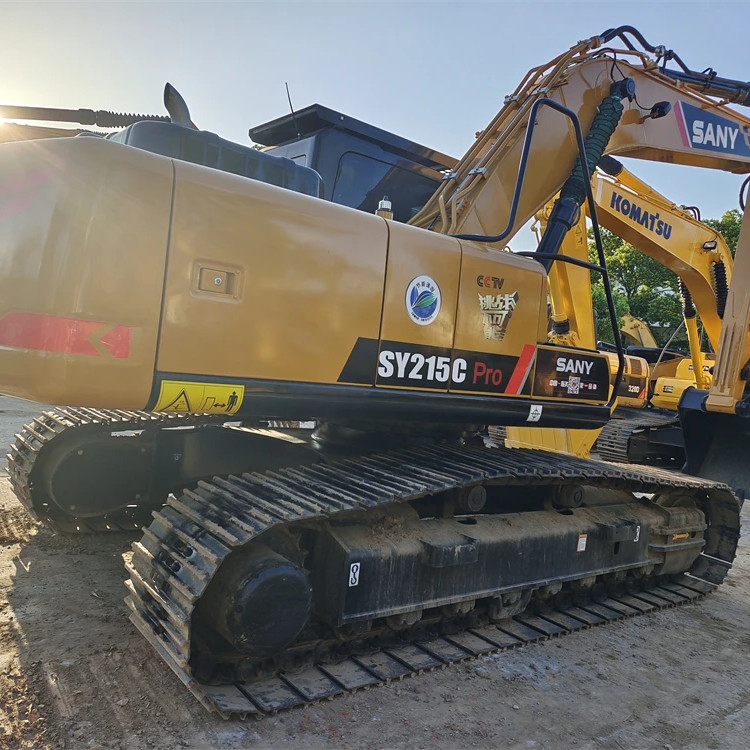

| Parameter Configuration of Sany Heavy Industry SY215C Excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 21 |
| Working weight of the whole machine (kg) 21900 |
| Bucket capacity (m ³) 1.1 (0.8~1.2) |
| performance |
| Rotation speed (rpm) 11 |
| Walking speed (km/h) 5.4/3.3 |
| Climbing ability (%) 70% (35 °) |
| Ground specific voltage (Kpa) 47.4 |
| Bucket excavation force (kN) 138 |
| Dipper arm excavation force (kN) 103 |
| dynamic system |
| Engine model Mitsubishi 4M50 |
| Rated power (kW/rpm) 118/2000 |
| Maximum torque (N.m) 580/1600 |
| Displacement (L) 4.9 |
| Number of cylinders 4 |
| Cooling method: water cooling |
| Oil capacity |
| Fuel tank (L) 390 |
| Hydraulic oil tank (L) 239 |
| Engine oil change quantity (L) 22 |
| Main body size |
| Total length of transportation (mm) 9680 |
| Total transportation width (mm) 2980 |
| Total transportation height (mm) 3440 |
| Full height of cab (mm) 3075 |
| Boarding width (mm) 2875 |
| Track grounding length (mm) 3445 |
| Total length of track (mm) 4250 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2380 |
| Minimum ground clearance (mm) 440 |
| Minimum turning radius of the front working device (mm) 3730 |
| Rear end turning radius (mm) 2900 |
| Maximum height at minimum turning radius (mm) 7680 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (pieces) 47 |
| Number of supporting wheels (one side) 8 |
| Scope of work |
| Maximum excavation radius (mm) 10280 |
| Maximum excavation depth (mm) 6600 |
| Maximum excavation height (mm) |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
9600
Maximum unloading height (mm) 6730
|
|
