Price: | $14,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd |
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
Contact :Tony |
Whats app/Mobile phone:+8613564042317 |
We chat number:13564042317 |
engine

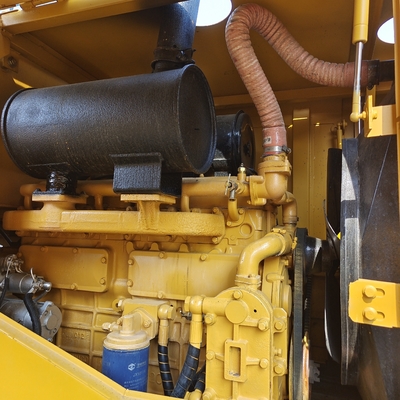

Engine model Yuchai Yuchai YC6108G
Basic performance
Bucket capacity (m ³) one point eight
Rated load (ton) 3-5 tons
Rated load capacity (kg) 3000
Excavation force (digging force) (kN) 96
Operating weight of the whole machine (kg) 10700
Unloading height - unloading angle is 45 ° (mm) 2950
technical parameter
Maximum traction force (kN) 96
Maximum Climbing Capacity (°) 30
Working device action time
Triple sum (s) 9.2
Overall dimensions
Overall length (mm) 7100
Overall width (mm) 2510
Overall height (mm) 3170
in bulk whole complete loading way
40HQ Load method
