| Price: | $29,000.00/sets >=1 sets |

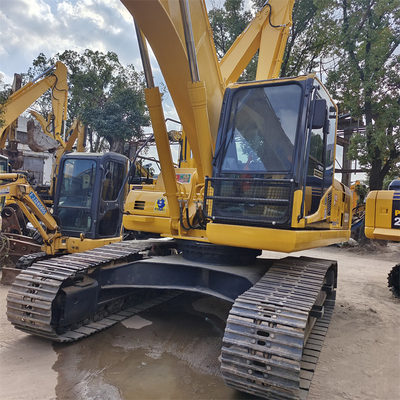

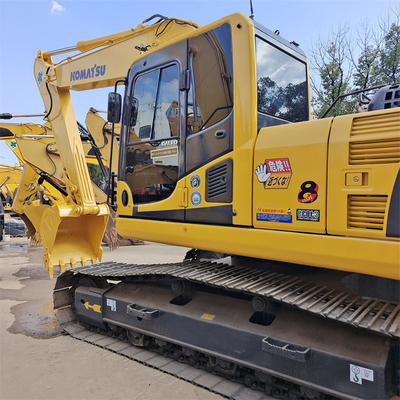

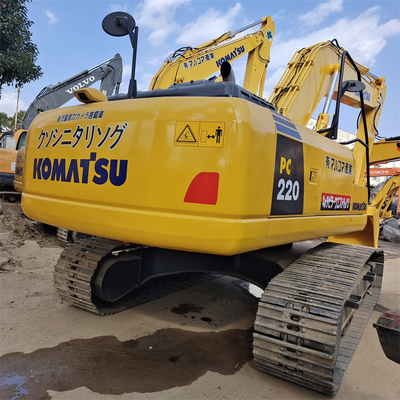

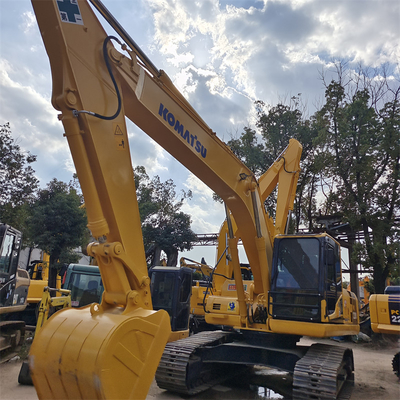

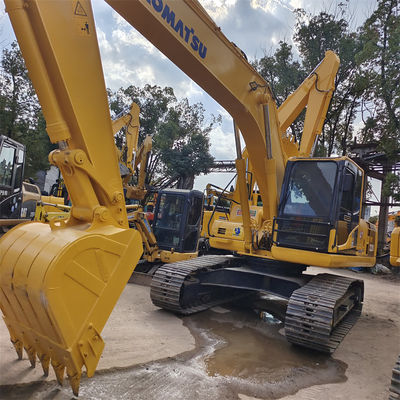

| Parameter Configuration of Komatsu PC220-8 Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Working weight of the whole machine (kg) 23100 |
| Bucket capacity (m ³) one |
| Boom length (mm) 5850 |
| Stick length (mm) 3045 |
| Tonnage (ton) 22 |
| performance |
| Rotation speed (rpm) 11.7 |
| Walking speed (km/h) 3.1/4.2/5.5 |
| Climbing ability (%) 70/35 ° |
| Ground specific voltage (Kpa) 50.4 |
| Bucket excavation force (kN) 172 |
| Dipper arm excavation force (kN) 129 |
| dynamic system |
| Engine model Komatsu SAA6D107E-1 |
| Rated power (kW/rpm) 110/2000 |
| Displacement (L) 6.69 |
| Number of cylinders (6) |
| Cooling method: water cooling |
| Working form: 6-cylinder, direct injection, turbocharged, post cooled engine; Meets the 2006 EPA/Tier3 and EUIIIA level standards. |
| hydraulic system |
| Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve) |
| Traveling hydraulic motor type axial piston motor × 2 (with parking brake) |
| Maximum flow rate of main pump (l/min) 439 |
| Hydraulic circuit for walking (Mpa) 37.3 |
| Rotary hydraulic circuit (Mpa) 28.9 |
| Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 130 x 1335 x 90 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 140 x 1635 x 100 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 130 x 1020 x 90 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 400 |
| Hydraulic oil tank (L) 135 |
| Engine oil change quantity (L) 23.1 |
| Cooling liquid (L) 19.8 |
| Main body size |
| Total length of transportation (mm) 9885 |
| Total transportation width (mm) 5190 |
| Total transportation height (mm) 3185 |
| Full height of cab (mm) 3055 |
| Track grounding length (mm) 3460 |
| Total length of track (mm) 4260 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 2980 |
| Track gauge (mm) 2380 |
| Minimum ground clearance (mm) 440 |
| Balance weight ground clearance (mm) 1100 |
| Rear end turning radius (mm) 2905 |
| Scope of work |
| Maximum excavation radius (mm) 10180 |
| Maximum excavation radius of the parking surface (mm) 10020 |
| Maximum excavation depth (mm) 6920 |
| Maximum excavation height (mm) 10000 |
| Maximum unloading height (mm) 7035 |
| Maximum vertical excavation depth (mm) 6010 |
| Maximum effective excavation depth (mm) 6700 |
| Bulldozer lifting or pushing depth (mm) without |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
