| MOQ: | 3000 sets |
| Price: | $28,000.00 - $36,000.00/sets |

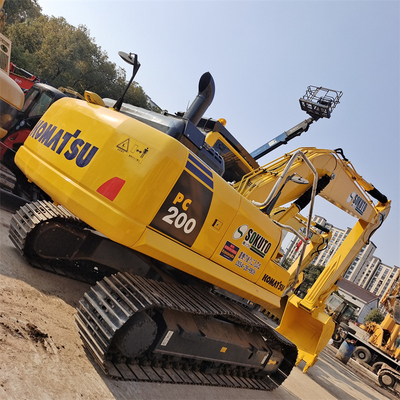

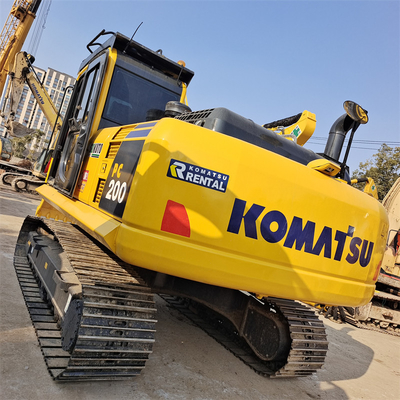

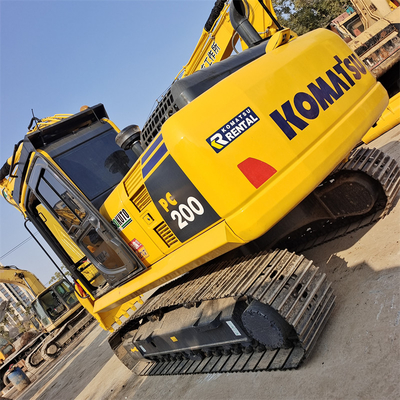

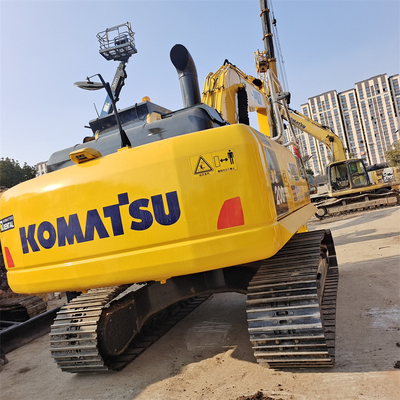

Parameter Configuration of Komatsu PC200-8 Excavator
specifications
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
Working weight of the whole machine (kg) 19900
Bucket capacity (m ³) zero point eight
Boom length (mm) 5700
Stick length (mm) 2925
Origin: Jining, Shandong
Tonnage (ton) 20
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Rotation speed (rpm) 12.4
Walking speed (km/h) 3.0/4.1/5.5
Climbing ability (%) 70/35 °
Ground specific voltage (Kpa) 44.1
Bucket excavation force (kN) 149
Dipper arm excavation force (kN) 108
dynamic system
Engine model Komatsu SAA6D107E-1
Rated power (kW/rpm) 110/2000
Displacement (L) 6.69
Working form: 6-cylinder, direct injection, turbocharged, post cooled engine; Meets the 2006 EPA/Tier3 and EUIIIA level standards.
hydraulic system
Traveling hydraulic motor type axial piston motor × 2 (with parking brake)
Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve)
Maximum flow rate of main pump (l/min) 439
Hydraulic circuit for walking (Mpa) 37.3
Rotary hydraulic circuit (Mpa) 28.9
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit
Boom oil cylinder - number x cylinder diameter x stroke (mm) 120 x 1334 x 85
Stick oil cylinder - number x cylinder diameter x stroke (mm) 135 x 1490 x 95
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 115 x 1120 x 80
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 400
Hydraulic oil tank (L) 135
Engine oil change quantity (L) 23.1
Cooling liquid (L) 20.4
Main body size
Total length of transportation (mm) 9480
Total transportation width (mm) 2800
Total transportation height (mm) 3040
Full height of cab (mm) 3040
Track grounding length (mm) 3275
Total length of track (mm) 4070
Track shoe width (mm) 600
Total width of track (mm) 2800
Track gauge (mm) 2200
Ground clearance of counterweight (mm) 1085
Minimum ground clearance (mm) 440
Rear end turning radius (mm) 2710
Scope of work
Maximum excavation radius (mm) 9875
Maximum excavation radius of the parking surface (mm) 9700
Maximum excavation depth (mm) 6620
Maximum excavation height (mm) 10000
Maximum unloading height (mm) 7110
Maximum vertical excavation depth (mm) 5980
Maximum effective excavation depth (mm) 6370
Bulldozer lift
|
|
