| Price: | $80,000.00/sets >=1 sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
| Address: No 1688 South Lian Hua Road, MinHang.ShangHai, P. R. China |
| Contact :Olivia |
| Whats app/Mobile phone:+8618701954897 |
| We chat number:18701954897 |

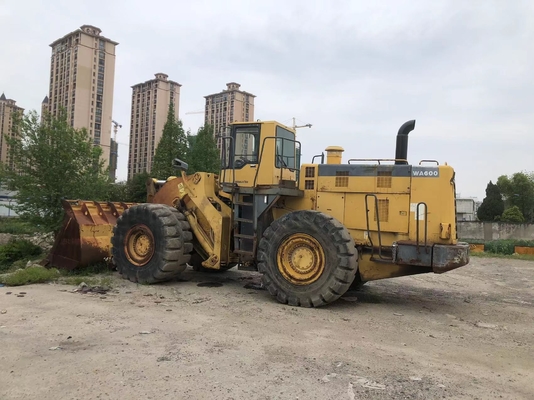

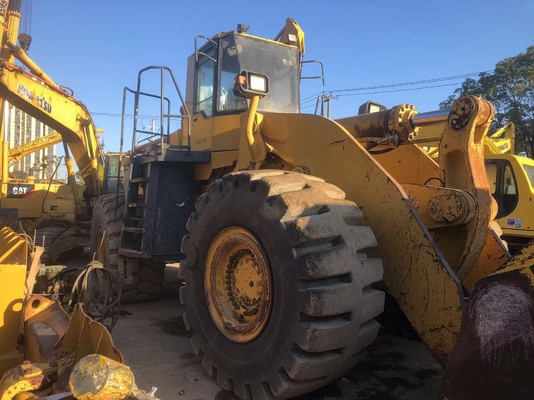

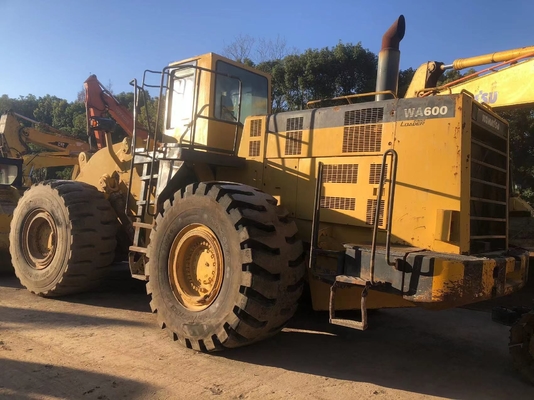

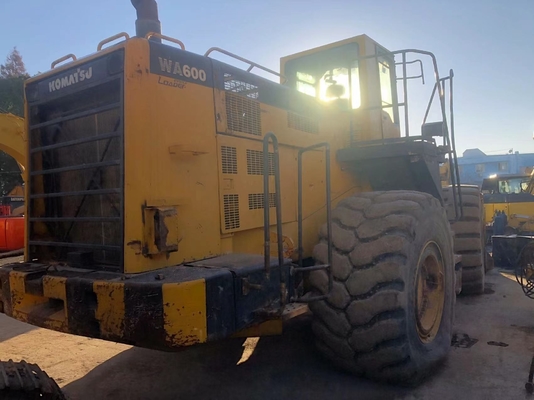

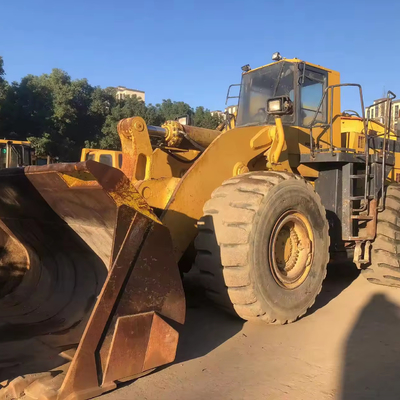

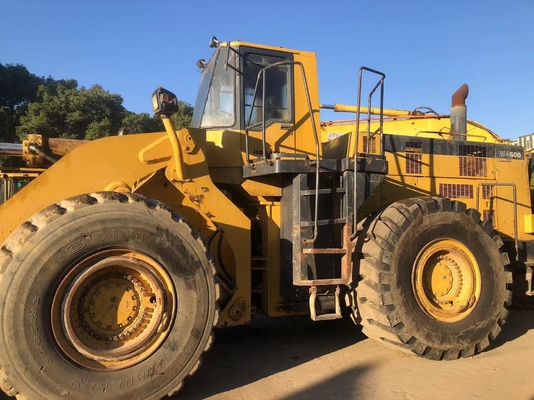

Parameter configuration of Komatsu WA600-3 loader
Basic performance
Operating weight of the whole machine (kg) 44500
Rated load capacity (kg) 12000
Bucket capacity (m ³) six point one
Maximum unloading height (mm) 3350
Unloading distance (mm) 1990
Excavation force (digging force) (kN) 369
Rated load capacity (ton) above 6 tons
engine
Engine model Komatsu SA6D170E
Working form: 4-stroke 6-cylinder inline turbocharged intercooled direct injection
Exhaust volume (L) 23.15
Rated power (kW/rpm) 328/2000
Oil capacity
Fuel tank (L) 670
Engine oil (L) 43
Transmission
Driving speed 1st gear (km/h) 7.4/8.2
Driving speed 2nd gear (km/h) 12.7/13.9
Driving speed 3rd gear (km/h) 21.0/23.0
Driving speed in 4th gear (km/h) 33.5/35.2
steering system
Steering angle 40 °
The minimum turning radius of the centerline of the outer wheel is 6980
technical parameter
Maximum traction force (kN) 324
Maximum Climbing Capacity (°) 25 °
Overall dimensions
Minimum ground clearance (mm) 495
Overall length (mm) 11040
Overall width (mm) 3570
Overall height (mm) 4250
Wheelbase (mm) 4100
|
|
