| Price: | $25,000.00 - $28,000.00/pieces |
Company’s Name:ShangHai Long shou machinery company Limited
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia.He
Whats app/ Mobile phone:+8618701954897
We chat number:18701954897

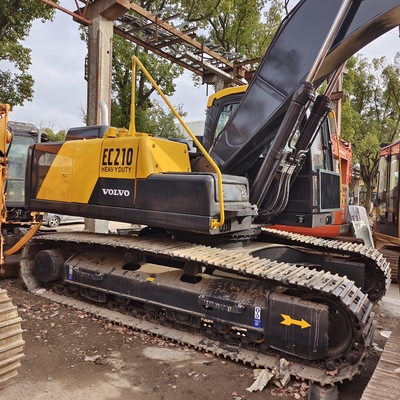

Volvo EC210D Excavator Parameter Configuration
specifications
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
Tonnage (ton) 21
Working weight of the whole machine (kg) 18100-22800
Bucket capacity (m ³) 0.52-1.22
Boom length (mm) 5700
Stick length (mm) 2900
performance
Rotation speed (rpm) 12.3
Rotating torque (Nm) 76.7
Walking speed (km/h) 3.5/5.8
Bucket excavation force (kN) 123
Dipper arm excavation force (kN) 96
Maximum traction force (kN) 183
dynamic system
Engine model Volvo D5E
Rated power (kW/rpm) 123/2000
Maximum torque (N.m) 670/1600
Displacement (L) 4.7
Number of cylinders 4
Cylinder diameter x stroke (mm) 108 * 130
hydraulic system
Main pump type: Two variable displacement axial piston pumps
Pilot pump type () Gear pump
Maximum flow rate of main pump (l/min) 2 x 212
Pilot pump flow rate (L/min) 1 x 18
Pilot oil circuit (MPa) 3.9
Working hydraulic oil circuit (Mpa) 32.4/34.3
Hydraulic circuit for walking (Mpa) 34.3
Rotary hydraulic circuit (Mpa) 27.9
Main overflow set pressure (Mpa) 32.4/36.3
Boom oil cylinder - number x cylinder diameter x stroke (mm) 2 * 125 x 1 235
Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 * 135 x 1 540
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 * 120 x 1 065
Oil capacity
Fuel tank (L) 375
Hydraulic oil tank (L) 160
Hydraulic system (L) 300
Engine oil change quantity (L) 17
Cooling liquid (L) 15
Main body size
Total length of transportation (mm) 9745
Total transportation width (mm) 2800
Total transportation height (mm) 3 080
Full height of cab (mm) 2930
Boarding width (mm) 2700
Track grounding length (mm) 3370
Total length of track (mm) 4160
Track shoe width (mm) 600
Track gauge (mm) 2200
Minimum ground clearance (mm) 460
Balance weight ground clearance (mm) 1025
Number of supporting wheels (one side) (number) 7
Number of carrier sprockets (one side) (2 pieces)
Number of track shoes (one side) (piece) 46
Scope of work
Maximum excavation radius (mm) 9930
Maximum excavation radius of the parking surface (mm) 9380
Maximum excavation depth (mm) 6730
Maximum excavation height (mm) 9220
Maximum unloading height (mm) 6430
Maximum vertical excavation depth (mm) 5620
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
