Parameter configuration of LiuGong ZL50CN loader

Basic performance

Rated load (ton) 3-5 tons

Rated load capacity (kg) 5000

Operating weight of the whole machine (kg) 16800

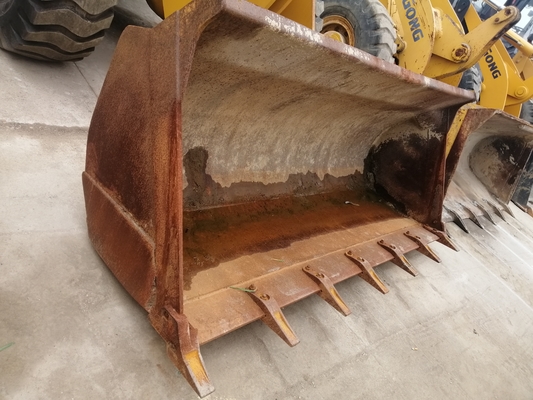

Bucket capacity (m ³) 1.8-5.6

Maximum unloading height (mm) 2970 ± 25

Unloading distance (mm) 1200 ± 25

Excavation force (digging force) (kN) 167

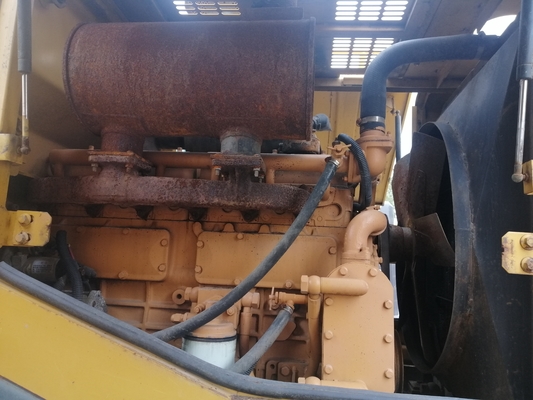

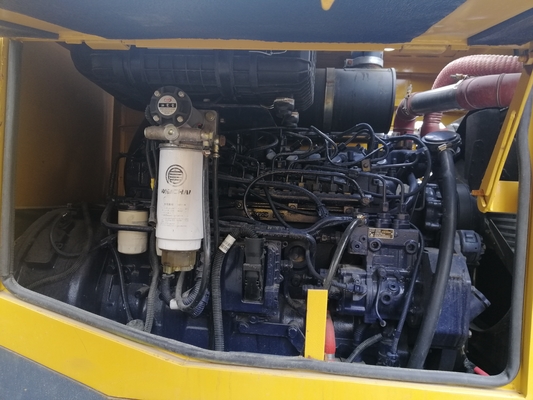

engine

Engine model Weichai WD10G220E21/E23

Rated power (kW/rpm) 162/2200

Cylinder diameter x stroke (mm) 126 x 130

Cooling method: water cooling

Working form: inline 6-cylinder; 4 strokes; Direct spray

Oil capacity

Fuel tank (L) 300

Hydraulic oil tank (L) 300

Cooling liquid (L) 54

Transmission

Brand and model of planetary gearbox; Multi disc clutch; Power shifting; Forced lubrication

Driving speed 1st gear (km/h) October 13th

Driving speed 2nd gear (km/h) 0-34

Drive axle

Drive axle model four-wheel drive

steering system

Steering angle ± 35 °

Turning radius - outside of bucket (mm) 7598

The minimum turning radius of the centerline of the outer wheel is 6347 ± 50

hydraulic system

Rated working pressure (bars) 17MPa

Boom cylinder diameter x stroke (mm x mm) 2-165 x 757

Bucket cylinder diameter x stroke (mm x mm) 1-200 x 540

Working device action time

Lifting (s) 6.5

Uninstall (s) 1.5

Lower the empty bucket (s) 3.5

Triple sum (s) 11.5

technical parameter

Maximum traction force (kN) 175

Material transportation position height (mm) 4020 ± 25

Distance from rear axle to hinge point (mm) 2227

Overall dimensions

Overall length (mm) 6600 ± 50

Overall width (mm) 2750 ± 50

Overall height (mm) 3470 ± 50

Maximum length of the entire machine (mm): 8030 ± 50

Minimum ground clearance (mm) 485

Bucket width (mm) 2976

Wheelbase (mm) 3427 ± 50

Track width (mm) 2150
