| Price: | $20,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897

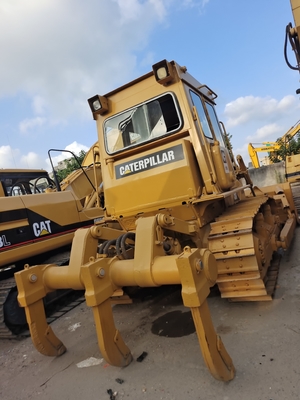

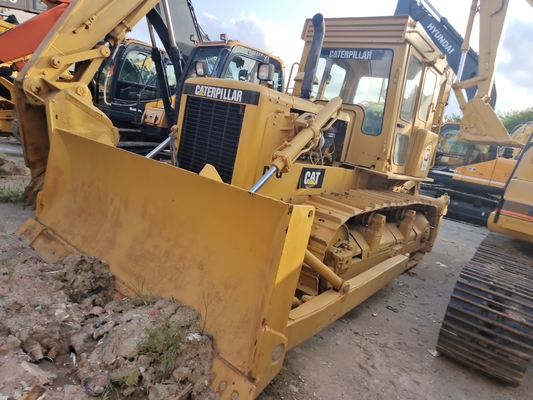

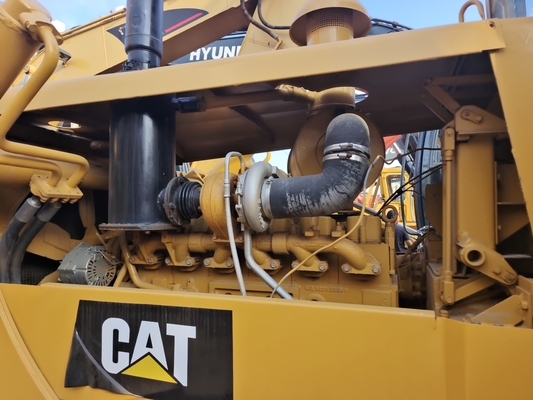

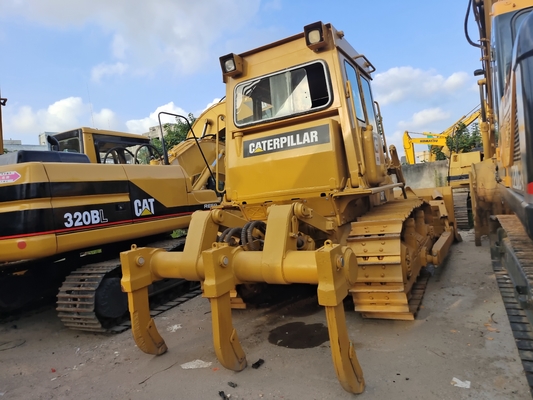

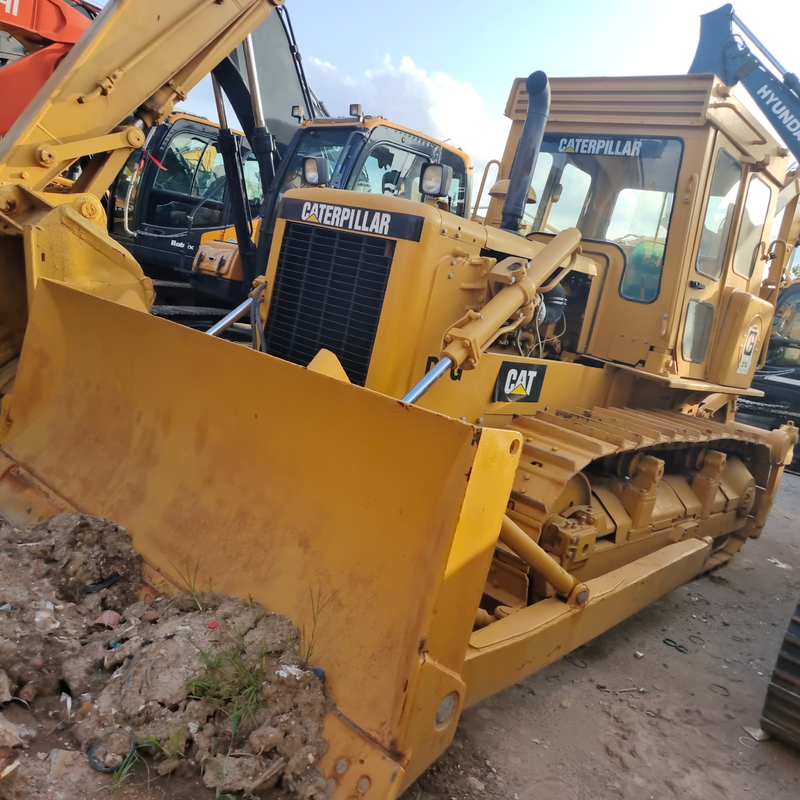

Technical parameters of Caterpillar D7G series Type 2 tracked bulldozer
engine
Flywheel power
202 hp
Maximum flywheel power
220 hp
Net power - Caterpillar
202 hp
Net power - ISO 9249
202 hp
Net power - SAE J1349
202 hp
Net power - EU 80/1269
202 hp
Cylinder diameter
4.75 in
stroke
6 inches
displacement
638 in3
weight
Working weight
45381 lb
Shipping weight
34510 lb
Bulldozer shovel
Capacity of Half U-shaped Blade
7.53 yd3
Capacity of S-shaped shovel
5.5 yd3
The capacity of the A blade
3.8 yd3
Engine - XL/XW/LGP
Transmission
Forward 1.0 gear
2.3 mph
Forward 2.0 gear
4 mph
Forward 3.0 gear
6.2 mph
Reverse 1.0 gear
2.8 mph
Reverse 2.0 gear
4.9 mph
Reverse 3.0 gear
7.9 mph
Walking device
Track shoe type
Medium speed driving (single grip)
Track shoe width
22 in
Track shoe width - optional
20 in
Track shoes/each side
thirty-eight
Grip tooth height
2.7 in
Grounding track
107 in
Grounding area
4708 in 2
Ground pressure
10.59 psi
Maintenance refill capacity
tank
110 gal
Cooling system
11.2 gal
Engine crankcase
7.3 gal
Final drive (on each side)
9 gal
Hydraulic oil tank
27 gal
Transmission, bevel gear and steering clutch chamber, torque converter
18.5 gal
Maximum working pressure hydraulic control mechanism

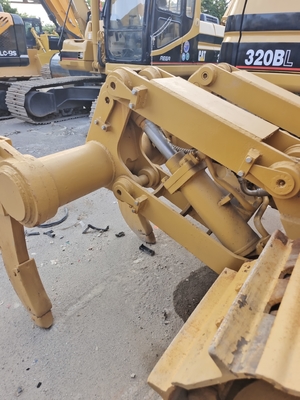

Ripper
type
Fixed parallel connecting rod
Number of gear sleeves
three
Total width of crossbeam
87 in
Maximum lifting clearance (below the tooth tip, fixed with a fixed pin on the bottom pin hole)
19 in
Maximum penetration force
20 in
Transmission system
Technical specifications of winch
Pump hydraulic control mechanism
Main safety valve setting hydraulic control mechanism
size
Ground clearance
13.74 in
track gauge
77.99 in
Width without blade installed
100.79 in
height
10.81 ft
The height of the rollover protection structure/roof
10.81 ft
Total length of basic configuration bulldozer (with drawbar)
13.78 ft
|
|
