| Price: | $35,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897

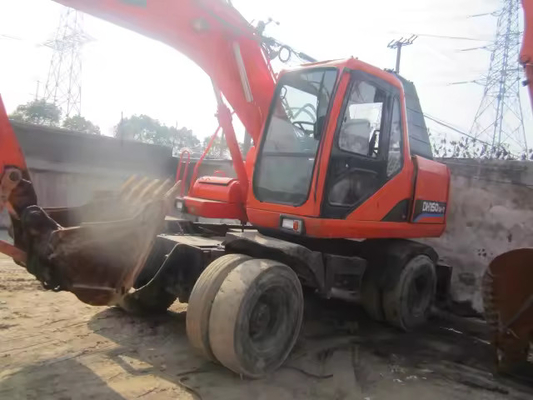

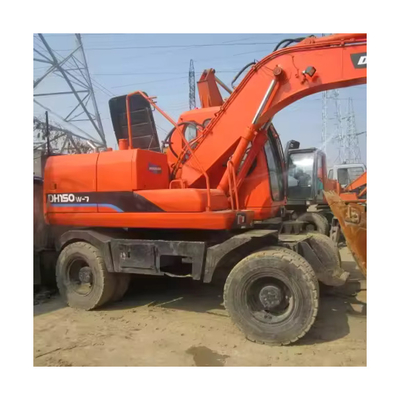

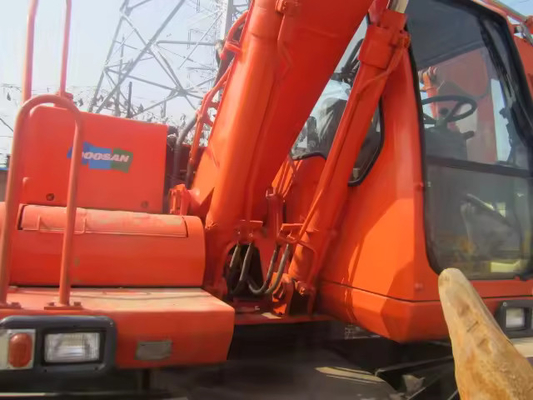

Doosan DH150W-7 Excavator
specifications
Working weight of the whole machine (kg) 12900
Bucket capacity (m ³) zero point five seven
Boom length (mm) 4300
Stick length (mm) 2100/2500
Origin Yantai
Tonnage (ton) 15
Manufacturer joint venture/import
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Drive form: hydraulic drive
Forward speed (Km/h) 10-37
Minimum turning radius (m) 77
Rotation speed (rpm) 12.5
Climbing ability (%) 70
Bucket excavation force (kN) 94.1
Dipper arm excavation force (kN) 68.6
Maximum traction force (kN) 62

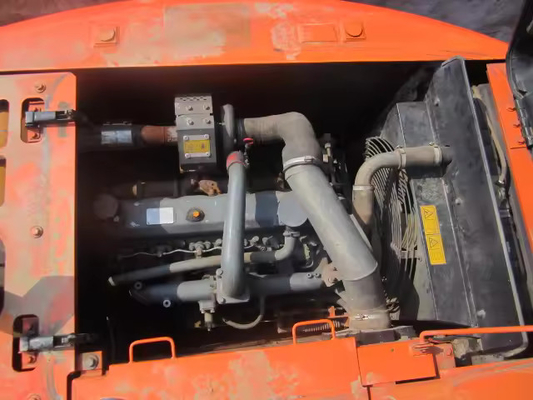

dynamic system
Engine model DB58TIS
Rated power (kW/rpm) 96/2200
Number of cylinders (6)
Cylinder diameter x stroke (mm) 102 x 118
Cooling method: air cooling
hydraulic system
Main pump type variable axial column racing pump
Maximum flow rate of main pump (l/min) 2 × 162
Working hydraulic oil circuit (Mpa) standard 22.7/Boost 34.3
Hydraulic circuit for walking (Mpa) 34.3
Rotary hydraulic circuit (Mpa) 26.5
Boom cylinder - cylinder diameter x stroke (mm) 2-110 x 1030
Stick cylinder - cylinder diameter x stroke (mm) 1-110 x 1085
Bucket cylinder - cylinder diameter x stroke (mm) 1-95 x 885
Oil capacity
Fuel tank (L) 280
Hydraulic oil tank (L) 95
Main body size
Total length of transportation (mm) 7250
Total transportation width (mm) 2495
Transportation total height (mm) 3125 (to the top of the cab)
Full height of cab (mm) 3116
Wheelbase (mm) 2800
Track width (mm) 1914
Single tire width (mm) 582
Total outer width of tire (mm) 2496
Ground clearance of counterweight (mm) 1241
Minimum ground clearance (mm) 350
Rear end turning radius (mm) 2210
Scope of work
Maximum excavation radius (mm) 7530
Maximum excavation radius on the ground (mm) 7295/7728
Maximum excavation depth (mm) 4615
Maximum vertical excavation depth (mm) 4086/4675
Maximum excavation height (mm) 8015
Maximum unloading height (mm) 5630
Minimum turning radius (mm) 2210
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
| Place of Origin | Korea |
|
|
