| Price: | $13,800.00/barrels >=1 barrels |

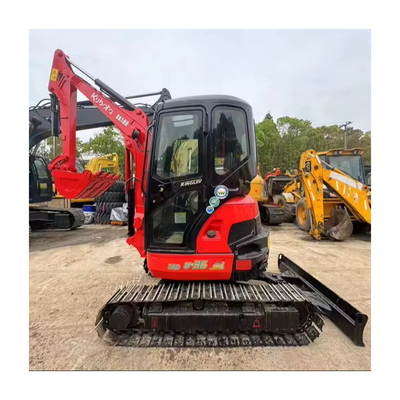

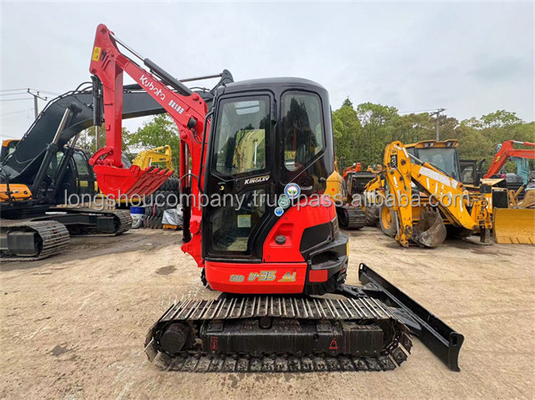

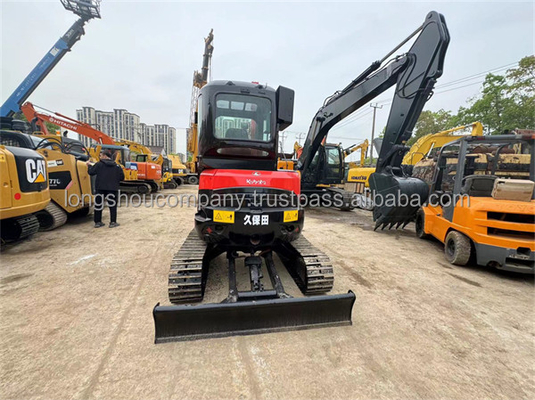

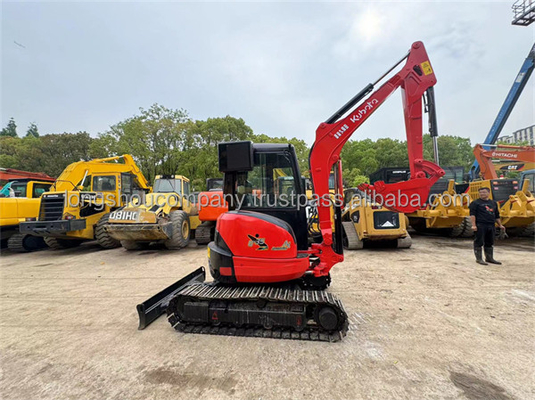

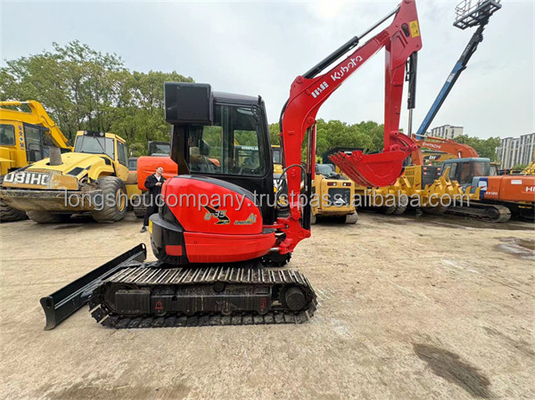

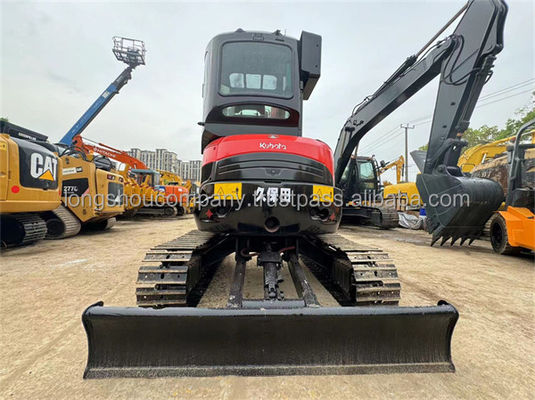

| Parameter configuration of Kubota U35 excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 3 |
| Working weight of the whole machine (kg) 3867 |
| Bucket width (mm) 600/550 |
| Bucket capacity (m ³) zero point one |
| performance |
| Rotation speed (rpm) 9 |
| Walking speed (km/h) 3.0/4.6 |
| Climbing ability (%) 30 ° |
| Bucket excavation force (kN) 29.5 |
| dynamic system |
| Engine model D1703-E4 |
| Rated power (kW/rpm) 18.5/2200 |
| Displacement (L) 1.647 |
| hydraulic system |
| Main pump type variable pump * 2+gear pump * 2 |
| Traveling hydraulic motor type: 2-speed plunger hydraulic motor |
| Rotary hydraulic motor type Plunger hydraulic motor |
| Oil capacity |
| Fuel tank (L) 45.1 |
| Main body size |
| Total length of transportation (mm) 4754 |
| Total transportation width (mm) 1700 |
| Total transportation height (mm) 2476 |
| Total length of track (mm) 2081 |
| Track shoe width (mm) 300 |
| Minimum ground clearance (mm) 287 |
| Minimum turning radius of the front working device (mm) 2251 |
| Rear end turning radius (mm) 900 |
| Scope of work |
| Maximum excavation radius (mm) 5275 |
| Maximum excavation depth (mm) 2989 |
| Maximum excavation height (mm) 4826 |
| Maximum unloading height (mm) 3404 |
| Maximum vertical excavation depth (mm) 2318 |
| Bulldozer width x height (mm) 1700 * 341 |
| Bulldozer lifting or pushing depth (mm) 392/425 |
|
|
