| MOQ: | 2 sets |
| Price: | $15,000.00/sets >=2 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :warm qiu
Whats app/Mobile phone:+8618019387660
We chat number:18019387660
specifications
Tonnage (ton) 6
Working weight of the whole machine (kg) 5550
Bucket capacity (m ³) 0.09-0.2
Boom length (mm) 3000
Stick length (mm) 1600
Origin Yantai, Shandong
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
dynamic system
Engine model Yangma 4TNV94L
Rated power (kW/rpm) 38.1/2200
Cooling method: water cooling
Number of cylinders 4
Working form: air to air intercooling
performance
Bucket excavation force (kN) 37.7
Dipper arm excavation force (kN) 28.4
hydraulic system
Maximum flow rate of main pump (l/min) 55 × 2
Hydraulic circuit for walking (Mpa) 20.6
Rotary hydraulic circuit (Mpa) 21.6

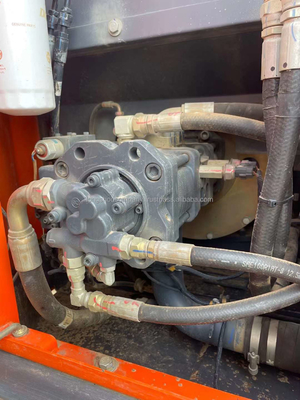

Main pump type variable axial piston pump × 2
Working hydraulic oil circuit (Mpa) 20.6
Pilot pump flow rate (L/min) 9.9
Main body size
Total length of transportation (mm) 5850
Total transportation width (mm) 1880
Total transportation height (mm) 2575
Full height of cab (mm) 2575
Minimum ground clearance (mm) 350
Rear end turning radius (mm) 1650
Boarding width (mm) 1885
Total length of track (mm) 2540
Track gauge (mm) 1480
Track shoe width (mm) 400
Total width of track (mm) 1880
Track grounding length (mm) 1990
Scope of work
Maximum excavation radius (mm) 6150
Maximum excavation depth (mm) 3820
Maximum excavation height (mm) 5760
Maximum unloading height (mm) 4030
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
| Place of Origin | Korea |
|
|
| MOQ: | 2 sets |
| Price: | $15,000.00/sets >=2 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :warm qiu
Whats app/Mobile phone:+8618019387660
We chat number:18019387660
specifications
Tonnage (ton) 6
Working weight of the whole machine (kg) 5550
Bucket capacity (m ³) 0.09-0.2
Boom length (mm) 3000
Stick length (mm) 1600
Origin Yantai, Shandong
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
dynamic system
Engine model Yangma 4TNV94L
Rated power (kW/rpm) 38.1/2200
Cooling method: water cooling
Number of cylinders 4
Working form: air to air intercooling
performance
Bucket excavation force (kN) 37.7
Dipper arm excavation force (kN) 28.4
hydraulic system
Maximum flow rate of main pump (l/min) 55 × 2
Hydraulic circuit for walking (Mpa) 20.6
Rotary hydraulic circuit (Mpa) 21.6
Main pump type variable axial piston pump × 2
Working hydraulic oil circuit (Mpa) 20.6
Pilot pump flow rate (L/min) 9.9
Main body size
Total length of transportation (mm) 5850
Total transportation width (mm) 1880
Total transportation height (mm) 2575
Full height of cab (mm) 2575
Minimum ground clearance (mm) 350
Rear end turning radius (mm) 1650
Boarding width (mm) 1885
Total length of track (mm) 2540
Track gauge (mm) 1480
Track shoe width (mm) 400
Total width of track (mm) 1880
Track grounding length (mm) 1990
Scope of work
Maximum excavation radius (mm) 6150
Maximum excavation depth (mm) 3820
Maximum excavation height (mm) 5760
Maximum unloading height (mm) 4030
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
| Place of Origin | Korea |
