| Price: | $26,000.00/sets >=1 sets |
|
Company’s Name:ShangHai Long shou machinery company Limited |
|
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
|
Contact :Olivia.He |
|
Whats app/ Mobile phone:+8618701954897 |
|
We chat number:18701954897 |
|
|
|

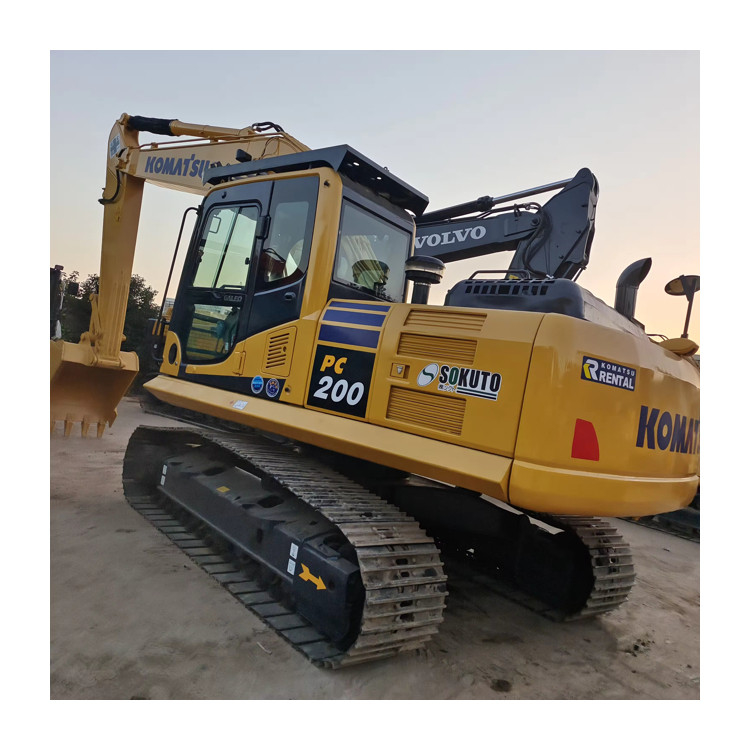

Parameter Configuration of Komatsu PC200-8 Excavator |
|
specifications |
|
Power Traditional Power |
|
Manufacturer joint venture/import |
|
Bucket Backhoe |
|
Working weight of the whole machine (kg) 19900 |
|
Bucket capacity (m ³) zero point eight |
|
Boom length (mm) 5700 |
|
Stick length (mm) 2925 |
|
Origin: Jining, Shandong |
|
Tonnage (ton) 20 |
|
Bucket Backhoe |
|
Manufacturer joint venture/import |
|
Power Traditional Power |
|
performance |
|
Rotation speed (rpm) 12.4 |
|
Walking speed (km/h) 3.0/4.1/5.5 |
|
Climbing ability (%) 70/35 ° |
|
Ground specific voltage (Kpa) 44.1 |
|
Bucket excavation force (kN) 149 |
|
Dipper arm excavation force (kN) 108 |
|

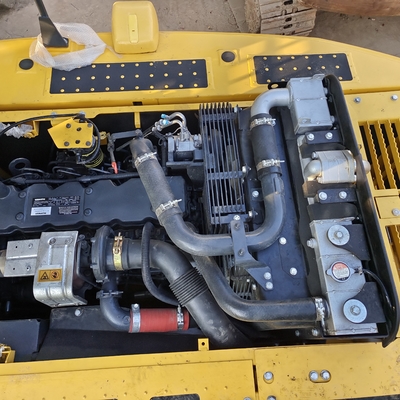

dynamic system |
|
Engine model Komatsu SAA6D107E-1 |
|
Rated power (kW/rpm) 110/2000 |
|
Displacement (L) 6.69 |
|
Working form: 6-cylinder, direct injection, turbocharged, post cooled engine; Meets the 2006 EPA/Tier3 and EUIIIA level standards. |
|

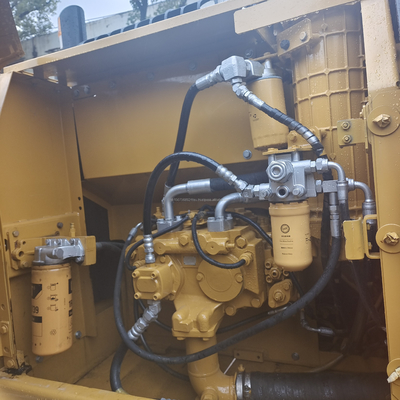

hydraulic system |
|
Traveling hydraulic motor type axial piston motor × 2 (with parking brake) |
|
Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve) |
|
Maximum flow rate of main pump (l/min) 439 |
|
Hydraulic circuit for walking (Mpa) 37.3 |
|
Rotary hydraulic circuit (Mpa) 28.9 |
|
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit |
|
Boom oil cylinder - number x cylinder diameter x stroke (mm) 120 x 1334 x 85 |
|
Stick oil cylinder - number x cylinder diameter x stroke (mm) 135 x 1490 x 95 |
|
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 115 x 1120 x 80 |
|
Is the hydraulic crushing pipeline standard? No |
|
Oil capacity |
|
Fuel tank (L) 400 |
|
Hydraulic oil tank (L) 135 |
|
Engine oil change quantity (L) 23.1 |
|
Cooling liquid (L) 20.4 |
|
Main body size |
|
Total length of transportation (mm) 9480 |
|
Total transportation width (mm) 2800 |
|
Total transportation height (mm) 3040 |
|
Full height of cab (mm) 3040 |
|
Track grounding length (mm) 3275 |
|
Total length of track (mm) 4070 |
|
Track shoe width (mm) 600 |
|
Total width of track (mm) 2800 |
|
Track gauge (mm) 2200 |
|
Ground clearance of counterweight (mm) 1085 |
|
Minimum ground clearance (mm) 440 |
|
Rear end turning radius (mm) 2710 |
|
Scope of work |
|
Maximum excavation radius (mm) 9875 |
|
Maximum excavation radius of the parking surface (mm) 9700 |
|
Maximum excavation depth (mm) 6620 |
|
Maximum excavation height (mm) 10000 |
|
Maximum unloading height (mm) 7110 |
|
Maximum vertical excavation depth (mm) 5980 |
|
Maximum effective excavation depth (mm) 6370 |
|
Bulldozer lifting or pushing depth (mm) without bulldozer |
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
