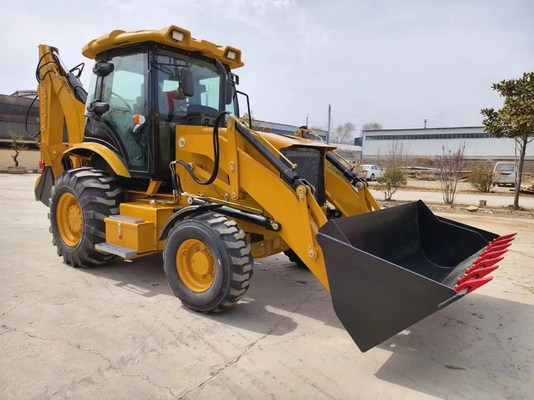

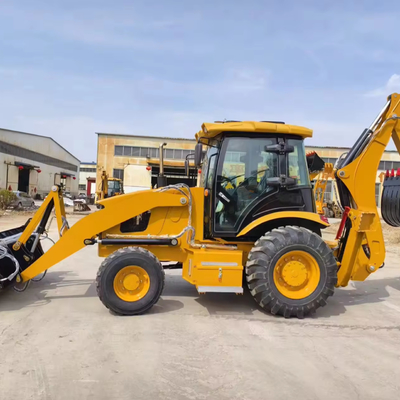

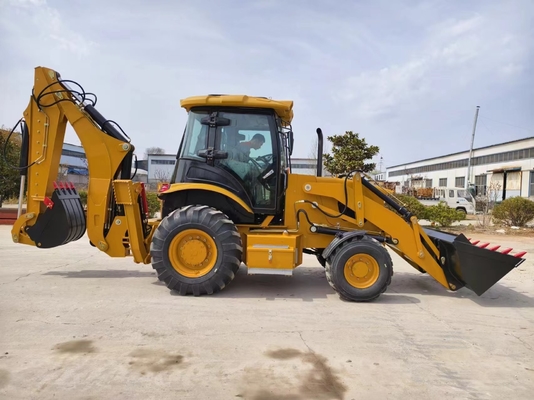

| Brand Name: | CATERPILLAR 420F |
| Price: | $23,000.00 - $26,000.00/sets |
| Technical parameters: |
| Product mode/parameter parameters and requirement parameters for the total project size |
| Overall Dimension |
| Total length (with bucket on ground) 6450 ± 80mm |
| Overall width (at stabilizer) 2490 ± 10mm |
| Load Bucket Width 2490 ± 10mm |
| Overall height (to the top of the cab) 3120 ± 10mm |
| Overall height (to the top of the digging pole) 3940 ± 20mm |
| Wheelbase 2335 ± 10 mm |
| Main technical parameters of track loading Back wheel Tread |
| Main Loading Technical Specification 2139 ± 10mm |
| Rated load Operating weight 9200kg2500KG |
| Rated bucket capacity 1.2m* |
| Maximum unloading height Max, dump clearance 3050 ± 50 mm |
| Unloading distance Dump reach 870 ± 20 mm |
| Turning radius (outer edge of bucket) Outside of bucket 6420 ± 100mm |
| Main Digging Technical Specification |
| Rated digging and catching capacity |
| Rated digging bucket capacity |
| 0.35m2 |
| Maximum digging depth 3820 ± 20 mm |
| Max digging radius, digging radius 5345 ± 20mm |
| Max unloading height, dumping height 3740 ± 20mm |
| Maximum digging force kgf |
| Maximum Digging Height 5470 ± 20mm |
| Diesel engine |
| Model YCD4J22T-115 or American Cummins engine |
| Type Water cooling |
| Rated output 85kw |
| Total exhaust of cylinder 4.6L |
| Rated speed 2200 (r/min) |
| Size of tire 16, 9-28 |
| Fuel consumption Ol Capacity |
| The hydraulic: oll tank 135.0 |
| Diesel fuel tank |
Method 1: Complete whole machine load in bulk
Method 2: load by 40HQ Container ,just move 4 tires
Method 3: load by 20GPContainer ,move 4 tires and cabin
|
|
