| MOQ: | 3 sets |
| Price: | $53,000.00/sets >=3 sets |
| Name:ShangHai Long shou machinery company Limited |
| Address: No 3539A Jingdong Road, MinHang district.ShangHai, P. R. China |
| Contact :olivia whats app.imo.or mobile phone:+86 18701954897 |
| we chat number:18701954897 |
|
|
|
|
| Parameter configuration of Shantui SD22 standard bulldozer |
| specifications |
| Working weight of the whole machine (kg) 23400 |
| Net power (kW/rpm) 162 |
| Bulldozer blade capacity (m3) 6.4 (straight tilt shovel) |
| engine |
| Engine model Chongqing Cummins NT855-C280 (S10) Cummins |
| Power 162/1800 |
| Displacement (L) 14 |
| Number of cylinders - cylinder diameter x stroke (n-mm x mm) 139.7 x 152.4 (6 cylinders) |
| Other instructions: inline, water-cooled, four stroke, top valve direct injection, turbocharged diesel engine |
| drive system |
| 1st gear walking speed (km/h) 0-3.6 |
| 2nd gear walking speed (km/h) 0-6.5 |
| 3rd gear walking speed (km/h) 0-11.2 |
| hydraulic system |
| Hydraulic pump type gear oil pump |
| Maximum flow rate of the main pump of the working device (L/min) 262 |
| Set pressure of relief valve for working device (MPa) 14 |
| External dimensions |
| Overall length (mm) 6805 |
| Overall width (mm) 2620 |
| Overall height (mm) 3395 |
| Minimum turning radius (m) 3.3 |
| Bulldozer shovel device |
| Bulldozer width x height (mm) 3725 * 1315 |
| Maximum descent height (mm) 540 |
| Maximum roll adjustment (mm) > 735 |
|
|
| MOQ: | 3 sets |
| Price: | $53,000.00/sets >=3 sets |
| Name:ShangHai Long shou machinery company Limited |
| Address: No 3539A Jingdong Road, MinHang district.ShangHai, P. R. China |
| Contact :olivia whats app.imo.or mobile phone:+86 18701954897 |
| we chat number:18701954897 |
|
|
|
|

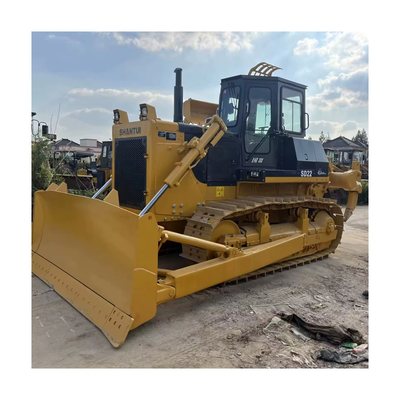

| Parameter configuration of Shantui SD22 standard bulldozer |
| specifications |
| Working weight of the whole machine (kg) 23400 |
| Net power (kW/rpm) 162 |
| Bulldozer blade capacity (m3) 6.4 (straight tilt shovel) |
| engine |
| Engine model Chongqing Cummins NT855-C280 (S10) Cummins |
| Power 162/1800 |
| Displacement (L) 14 |
| Number of cylinders - cylinder diameter x stroke (n-mm x mm) 139.7 x 152.4 (6 cylinders) |
| Other instructions: inline, water-cooled, four stroke, top valve direct injection, turbocharged diesel engine |
| drive system |
| 1st gear walking speed (km/h) 0-3.6 |
| 2nd gear walking speed (km/h) 0-6.5 |
| 3rd gear walking speed (km/h) 0-11.2 |
| hydraulic system |
| Hydraulic pump type gear oil pump |
| Maximum flow rate of the main pump of the working device (L/min) 262 |
| Set pressure of relief valve for working device (MPa) 14 |
| External dimensions |
| Overall length (mm) 6805 |
| Overall width (mm) 2620 |
| Overall height (mm) 3395 |
| Minimum turning radius (m) 3.3 |
| Bulldozer shovel device |
| Bulldozer width x height (mm) 3725 * 1315 |
| Maximum descent height (mm) 540 |
| Maximum roll adjustment (mm) > 735 |
